SM534
Terminal Block Open Barrier Type 30A 8 Way
Typical applications
- Application in general industrial equipment and home appliances like uninterrupted power supplies.
- Invertors
- Printers
- Stabilizers
- Air Conditioners
- Industrial Lights
- Industrial Control Panel
Key features
- Nickel Plated Screws
- Nickel Plated Wire Retainers
Technical specifications
| H.V Breakdown test | > 1.5 KV AC for 1 Minute |
|---|---|
| Current Rating | 30A 250 V AC |
| Contact Resistance | < 10 m Ohms |
| Insulation Resistance | > 1000m ohm |
| Ambient Temperature | -25 °C to + 80 °C |
| Housing Material | Phenolic Moulded |
| Terminals | Brass |
| Terminals Finish | Nickel Plated |
| Mounting | Chassis Mounting |
| Color | Black |
Product details
| Part number | SM534 |
|---|---|
| Family | Terminal Blocks |
| Manufactured at | SAS Nagar (Mohali), Punjab |

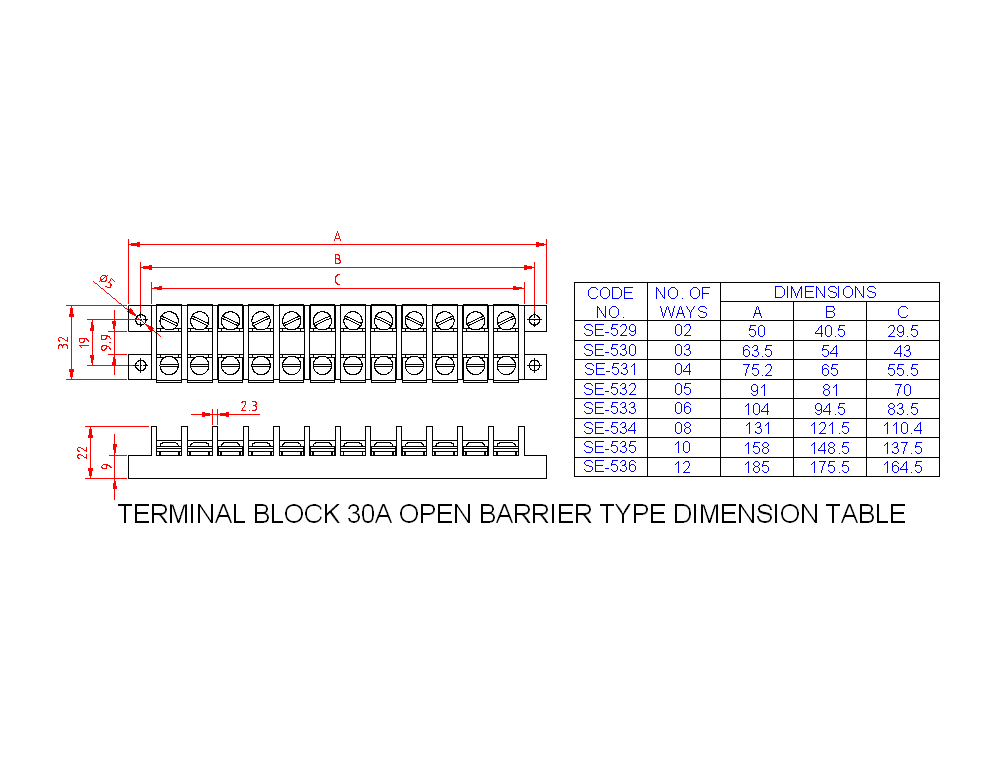

| Documentation | Drawing & test report on request |
